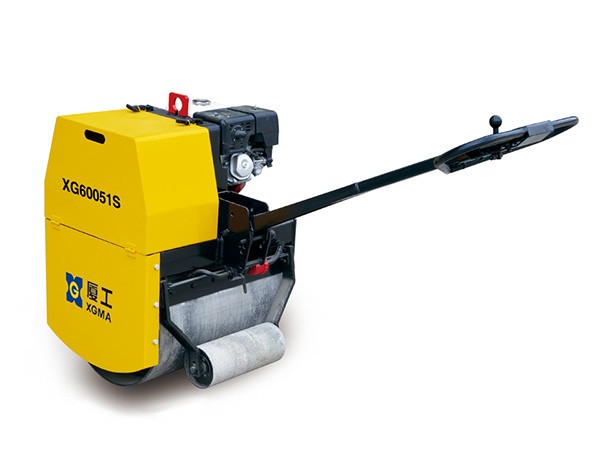

Walk Behind Vibratory Roller

Walk Behind Vibratory Roller

  • Operating Weight: 520kg Rated Power: 13kw Drum Width: 720mm

Product Features

1.Applicable to compacting the bases and surfaces of parking lot, carriageway and bikeway as well as various bituminous surface. It is an ideal choice for compaction of rocks along roads and bases of wall or buildings. 2.Applied with the imported HONDA GX390 gasoline engine. 3.Manipulation handle, adjustable to make the operation easy and simple and also longitudinally foldable to facilitate its transportation and storage. 4.Equipped with the imported high-quality vibratory bearing, making a high vibrating frequency for vibratory wheel (more than 60Hz), large exciting force (15KN) and producing high-quality road surface as a result.

Specification


Description Unit XG60051S
Operating Weight kg 520
Drum Diameter mm 560
Drum Width mm 720
Static Linear Load(vibration wheel) N/cm 91
Transmission   Transmission Hydraulic
Travel Speed Forward km/h 0 - 3
Reverse km/h 0 - 1.5
Theoretical Gradeability % 20
Vibration Frequency Hz 65
Nominal Amplitude mm 0.5
Centrifugal Force KN 15
Engine Brand   HONDA
Model   GX390
Rated power PS 13
Rated speed rpm 3600
Overall Dimensions (LxWxH) mm 2170×840×1085(1960 erect)
