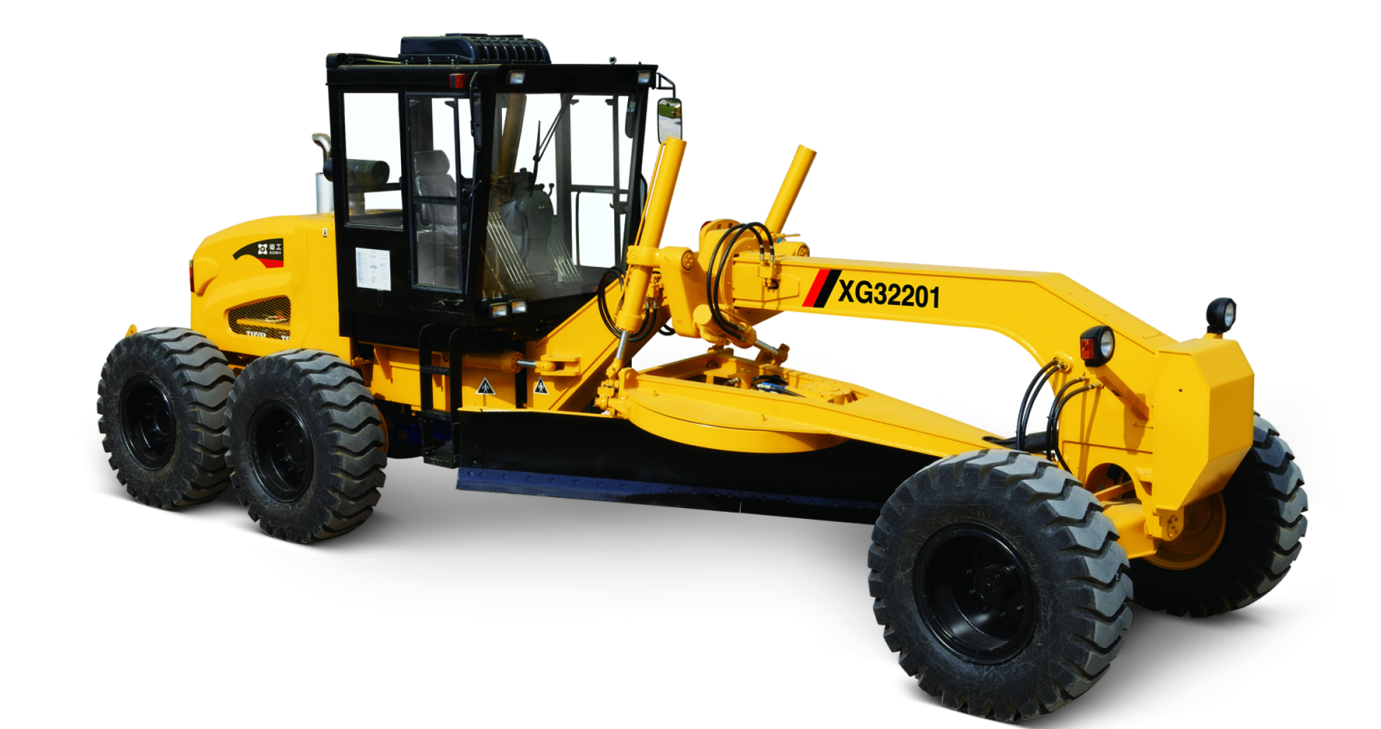

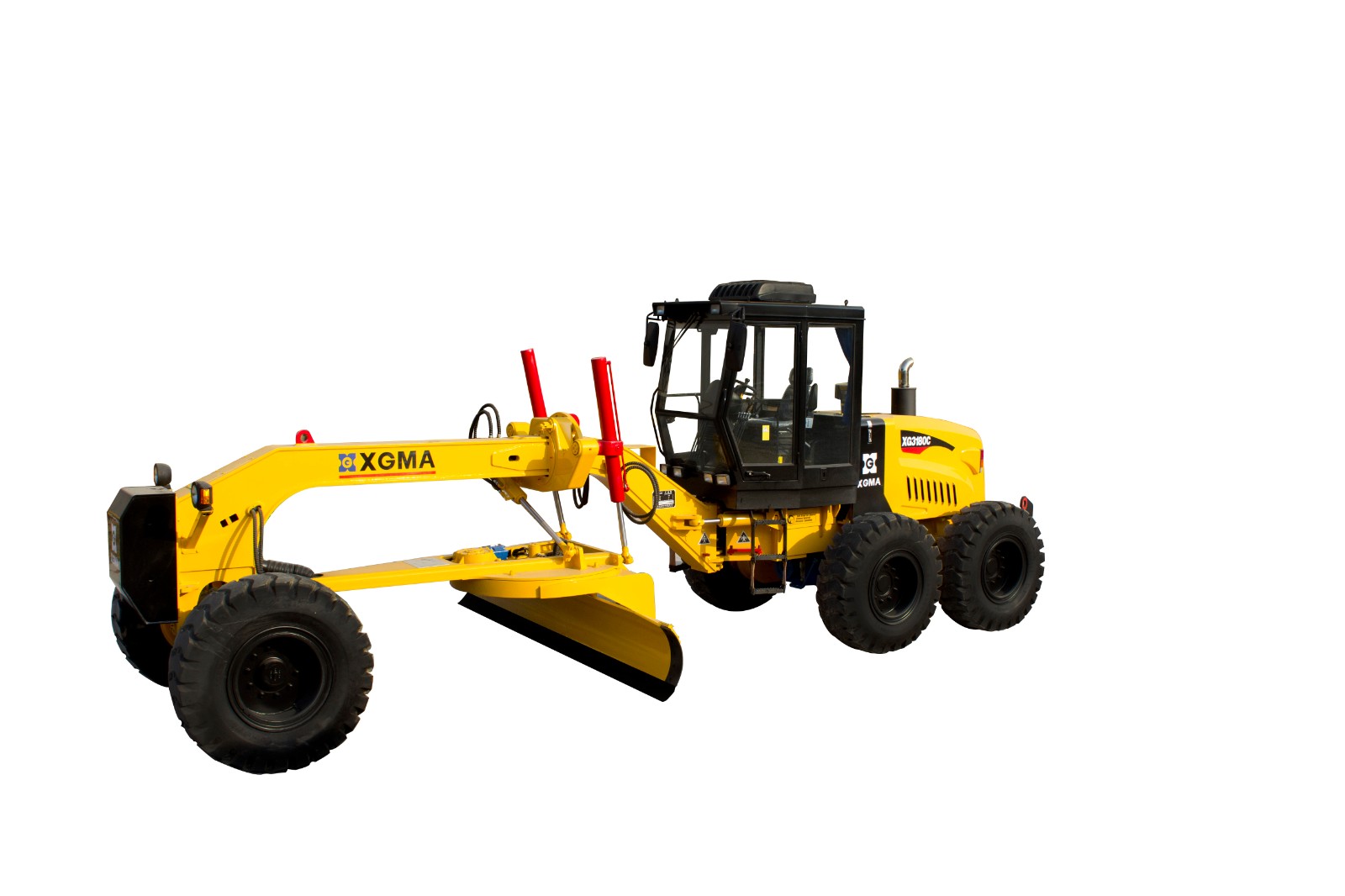

C-Series

C-Series

  • Total Weight: 14500-17000kg Rated Power: 132/180-179/240 kw/hp Rated Speed: 2200rpm

Product Features

1.Dual-pump and double-circuit open system completed with HUSCO&REXROTH hydraulic valves and EATON hydraulic locks, making the blade control more flexible and reliable. 2.Equipped with special grader rear axle assembly, with built-in imported NO-SPIN differential. 3.Equipped with the slewing gear ring and blade guide rail of new structure, facilitating the service and maintenance. 4.Strong structural strength with the reinforced front axle. 5.Streamline engine hood with a novel and unique shape ensures easy maintenance and heat dissipation.

Specification

Description Unit XG3165C XG3180C XG3200C XG3220C
Engine Brand   Dongfeng Cummins Dongfeng Cummins
       Shanghai Diesel Engine
Dongfeng Cummins Dongfeng Cummins
Model   6BTAA5.9-C180 6BTAA5.9-C180
       SC8D190.1G2
6CTAA8.3-C215 6CTA8.3-C240
Rated power kW/HP 132/180 140/190 132/180 140/190 160/215 179/240
Rated speed rpm 2200 2200 2200 2200
Blade Height×String height mm 3660×610 3965×610 3965×610 4270×610
Reversing angle ° 360
Max. blade angle ° 90
Cutting depth mm 500
Drive type   Motor+Worm case
Transmission Type   Electrohydraulic gearshift
Number of gears   F6/R3
Forward speed km/h 4.9、7.6、12.3
       18.5、26.8、40.1
5、8.7、11.4
       19.3、23.6、40.1
5.1、8.7、11.4
       19.5、24.1、40.1
5.0、8.7、11.4
       19.3、23.9、40.1
Reverse speed km/h 4.9、12.3、26.8 5、11.4、23.6 5.1、11.4、24.1 5.0、11.4、24.1
Drive type   Rear-axle drive
Max. traction force KN ≮80 ≮84 ≮88 ≮92
Tire spec.   17.5-25PR12
Tire pressure   0.26-0.28
Total Weight kg 14500 15500 16200 17000
Basic Overall Dimensions(L×W×H) mm 8880×2595×3390 9080×2595×3390 9400×2595×3390 9450×2595×3390
Full Overall Dimensions(L×W×H) mm 10330×2750×3390 10530×2750×3390 10850×2750×3390 10900×2750×3390
